OPTO-ELECTRONIC PERFORMANCE

Sensor format 1

2048 pixels with 2048 readout ADCs

Optical aperature (pixel height)1

210μm

Quantum efficency1

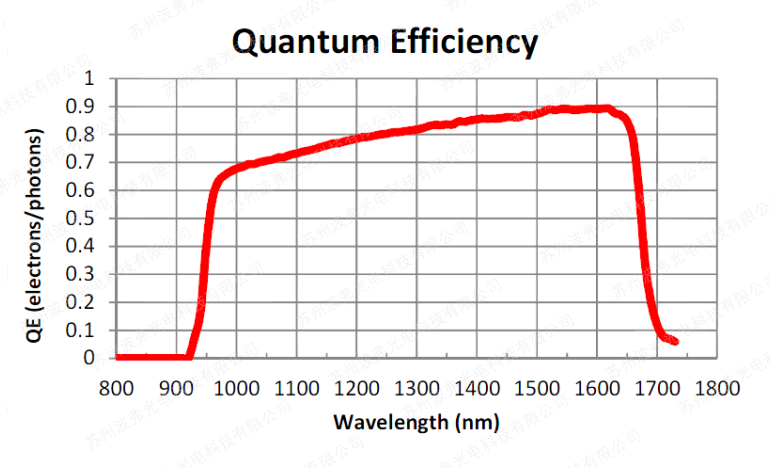

> 60% 0.98μm-1.65μm; > 70% peak response @ 1.55μm

Gain setting

Temporal noise

 (rms counts)1 2 4

High

Medium High

Medium Low

Low

Typical

Specification

Typical

Specification

Typical

Specification

Typical

Specification

6.7

<7.3

3.4

<4.2

2.4

< 2.7

2

<2.5

Dynamic range1, 2

560:1

> 510:1

1140:1

> 920:1

> 1640:1

> 1460:1

1990:1

> 1590:1

Differential non-linearity1 2

+/- 1.1

< +/- 2.5%

+/- 1.5

< +/- 2.5%

+/- 1.5

< +/- 2.5%

+/- 1.5

< +/- 2.5%

Bad pixel specification

White, dark, noisy or pixels exceeding +/- 20 % of the mean value when illuminated at 50% of full well.

Number of bad pixels limited to a maximum of 1% of array total; on-board pixel replacement function

Exposure time1 3

4.5μs to 0.1 ms, user programmed in pixel clock cycles or via the width of the ext. trigger

Trigger modes 3

Free run, single line per trigger (ET set by camera), or variable exposure

Self-Triggered Line Rates

Three ranges: 9.5 k to 80 k-lps, 73 k to 126 k-lps; and 114 to 147 k-lps

External trigger 3

Via CC1 signal line in Camera Link cable

External variable ET

User set by the duration of trigger input signal (minimum ET pulse: 4.5μs)

External trigger jitter

+/-3 clock cycle: nominally 62.5 ns

Pixel rate

301 Mpix/s with 4 x 12-bit words transferred on each Camera Link strobe clock at 80 MHz

Digital output format

12-bit Medium Camera Link?;

recommend NI PCIe-1433 or frame grabber with throughput of >606 Mbytes/s to PC motherboard

(minimum of 4 bi-directional PCIe express lanes in PC)

Readout mode

Integrate-while read, differential double sampling

Corrections (preset OPR)

Factory or user calibrated gain, offset, and bad pixel replace.

REGULATORY COMPLIANCE

CE:

Meets class A for emission, immunity & ESD standards, RoHS

FCC:

Meets requirements for Part 15, Subpart B, Class A, 2006

ENVIRONMENTAL & POWER

Operating Case Temperature

+10°C to +35°C

Storage Temperature

-10°C to 60°C

Humidity

Up to 95% and non-condensing

Power Requirements:
AC Adapter Supplied
DC Voltage
Typical Power

100–240 VAC, 47–63 Hz
+6 to 12 VDC (Maximum: 13.1 VDC)
< 4 W at 30°C case temp1

In-rush Current

< 1.25 A @ 12 VDC

Width x Height x Depth:

8.3 cm x 10.2 cm x 1.6 cm (excludes I/O connectors, and lens adapter)

3.25 in x 4 in x 0.64 in (excludes I/O connectors, and lens adapter)

Weight:

< 240 g or 8.6 oz (no lens or adapter)

Threaded Lens Mount and optional lens mount adapters

M42x1-6H with ~6 mm to image plane.

None, fixed distance C-Mount adapter or adjustable distance

F-Mount adapter (see ordering info)

Spectrometer Mount

4 tapped 8-32 holes in 2 inch square pattern, 2 tapped 8-32 holes in-line with image axis,

O-Ring light seal, 1.9 inch diameter, 1/16th thickness

Camera Tripod
Mount

2 tapped?-20 holes, one on bottom, one on side wall.

ORDERING INFORMATION

Camera Model

Part number

Max. Line rate

Pitch

Pixels

FPA length

Aperture (height)

Classification

GL2048R-10A-ENC-STD-210

8000-0587

147,000 lps

10 μm

2048

20.48 mm

210 μm

EAR99

Gl 2048 Power Supply

8000-0636
