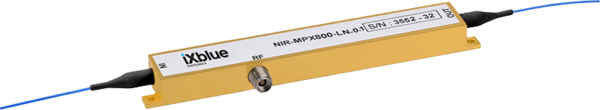

新型近紅外鈮酸鋰相位調制器NIR-MPZ-LN-20是法國iXblue公司最新研發設計的20GHz，低插損、低半波電壓950-1150nm波段相位調制器，最大光功率+25dBm，最大射頻功率為+33dBm；非常適合于激光合束、光譜展寬、激光頻率梳等應用。
(新型近紅外鈮酸鋰相位調制器，1060nm，20GHz帶寬，Z-Cut設計)
All specifications given at 25°C, 1060 nm, unless differently specified. This data-sheet is based as per specifications SP-0242-PR-01.
|
ELECTRICAL |
||||
|
|
|
Min |
Typ |
Max |
|
Electro-optic bandwidth S21 @-3 dB, from 2 GHz |
GHz |
- |
16 |
- |
|
Usable electro-optic bandwidth S21 (1) |
GHz |
- |
30 |
- |
|
Electrical return loss S11 0 - 20 GHz |
dB |
- |
-13 |
- |
|
Vπ RF electrodes @ 50 kHz |
V |
- |
3.5 |
- |
|
Vπ RF electrodes @ 20 GHz |
V |
- |
6 |
- |
|
RF ports impedance matching |
Ω |
- |
50 |
- |
|
(1) No sharp dips in the S21 response. |
||||
|
OPTICAL |
||||
|
Crystal |
Lithium Niobate Z-Cut Y-Prop |
|
||
|
Wavelength of operation |
nm |
950 |
1060 |
1150 |
|
Insertion loss, @ max of transmission, w/o connectors |
dB |
- |
3 |
4 |
|
Polarization extinction ratio |
dB |
20 |
- |
- |
|
OPTICAL INTERFACES |
||||
|
Input and output fibers |
Polarization maintaining 980 nm, Corning PM 98-U25D length: 1.5 meter, buffer diameter 900 μm |
|||
|
Package size (L x l x H) |
85 x 15 x 9.65 mm3 |
|||
|
Input RF connector |
Female K |
|||
|
Optical connectors |
FC/APC (slow axis parallel to the connector key) |
|||
|
ENVIRONMENTAL |
||||
|
Operating temperature |
-30 °c to +70 °C |
|||
|
Storage temperature |
-40 °C to +85 °C |
|||
|
MAXIMUM RATINGS |
||||
|
Maximum RF input power |
+33 dBm |
|||
|
Maximum optical input power |
+25 dBm |
|||
尺寸結構
更多產品信息，需求信息，請聯系蘇州波弗光電科技有限公司相關銷售人員，咨詢郵箱：sales@bonphot.com ！
